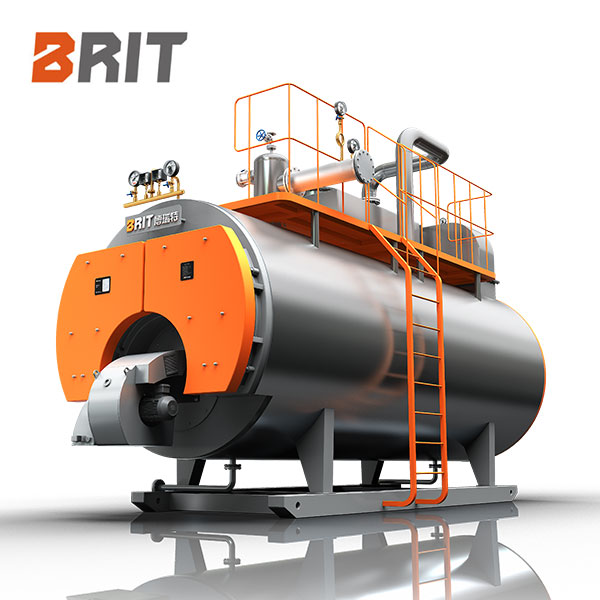

WNS Three-Pass Fire-Tube Gas Steam Boiler
1. Full-waveform furnace structure avoids cracking caused by stress concentration, extending boiler’s service life.
2. Unique “welding & expansion” process prevents subcooled boiling at the tube and plate welds, ensuring a safe, reliable and stable boiler operation.
3. Fire-tube adopts special threaded tube to reduce smoke flow resistance and enhance the heat transfer effect.
4. Frameless outer-clad structure & entire coating with heat-resistant paint minimize the heat losses.
5. Large combustion chamber design enables fuel to burn more fully and thoroughly at a relatively low furnace volume heat load, and nitrogen oxides are less than 30mg/Nm³.
Description
Product Name: Three-Pass Fire-Tube Gas Steam Boiler
Product Model: WNS Series
HS Code: 84021900
Manufacturing Standards: ASME/EU/GB
Packing: Boiler proper in nude packing, auxiliaries in steel frames for bulk vessel.
Application Range: 1t/h≤D≤20t/h; P≤1.25Mpa
Parameters for 1t/h ~ 5t/h
| Model / Parameters | WNS1-1.25-Q | WNS2-1.25-Q | WNS3-1.25-Q | WNS4-1.25-Q | WNS5-1.25-Q | ||
|---|---|---|---|---|---|---|---|
| Rated evaporation (T/H) | 1 | 2 | 3 | 4 | 5 | ||
| Rated working pressure (MPa) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | ||
| Saturated steam temperature (℃) | 193 | 193 | 193 | 193 | 193 | ||
| Feed water temperature (℃) | 20 | 20 | 20 | 20 | 20 | ||
| Full water capacity (m³) | 3.6 | 5.0 | 7.5 | 11.0 | 12 | ||
| Design thermal efficiency (%) | ≥96 | ≥96 | ≥96 | ≥96 | ≥96 | ||
| Exhaust gas temperature (℃) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ||
| Design fuel | Natural gas, city gas, gas, coke oven gas, 0# light diesel, etc. | ||||||
| Transport weight of the largest component (t) | 5.5 | 6 | 11 | 12.5 | 15 | ||
| Dimensions of boiler proper (L×W×H) (mm) | 3700×1800×2100 | 4400×2000×2300 | 4700×2300×2900 | 5200×2450×2850 | 5450×2550×2950 | ||
| Interface diameter (mm) | |||||||
| Main steam valve | DN50 | DN65 | DN80 | DN100 | DN100 | ||
| Safety valve | 2×DN40 | 2×DN40 | 2×DN40 | 2×DN50 | 2×DN65 | ||
| Water inlet valve | DN25 | DN32 | DN40 | DN40 | DN40 | ||
| Blowdown valve | 2×DN50 | 2×DN50 | 2×DN50 | 2×DN50 | 2×DN50 | ||
Note:
1. The right to interpret this product belongs to Brit Thermal Energy Equipment Co., LTD., the design data may subject to changes without prior notice, the final design drawing shall prevail.
2. We can design and manufacture boilers with other parameters according to customers’ requirements.
Parameters for 6t/h ~ 20t/h
| Model Parameters | WNS6-1.25-Q | WNS8-1.25-Q | WNS10-1.25-Q | WNS15-1.25-Q | WNS20-1.25-Q | ||
|---|---|---|---|---|---|---|---|
| Rated evaporation (T/H) | 6 | 8 | 10 | 15 | 20 | ||
| Rated working pressure (MPa) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | ||
| Saturated steam temperature (℃) | 193 | 193 | 193 | 193 | 193 | ||
| Feed water temperature (℃) | 20 | 20 | 104 | 104 | 104 | ||
| Full water capacity (m³) | 13.85 | 20 | 26 | 28.2 | 37.3 | ||
| Design thermal efficiency (%) | ≥96 | ≥96 | ≥96 | ≥96 | ≥96 | ||
| Exhaust gas temperature (℃) | ≤100 | ≤100 | ≤100 | ≤100 | ≤100 | ||
| Design fuel | Natural gas, city gas, gas, coke oven gas, 0# light diesel, etc. | ||||||
| Transport weight of the largest component (t) | 20/18 | 24 | 27 | 40 | 52.5 | ||
| Dimensions of boiler proper (L×W×H) (mm) | 5900×2700×3200 | 6500×2950×3450 | 7100×3200×3600 | 7700×4600×5000 | 8850×3700×4055 | ||
| Dimensions after installation (L×W×H) (mm) | 7900×3800×4650 | 8534×3800×4650 | 8650×4650×5000 | 9200×4660×5100 | 9900×4850×5600 | ||
| Interface diameter (mm) | |||||||
| Main steam valve | DN125 | DN150 | DN150 | DN200 | DN200 | ||
| Safety valve | 2×DN65 | 2×DN80 | 2×DN80 | 2×DN100 | 2×DN100 | ||
| Water inlet valve | DN50 | DN50 | DN65 | DN65 | DN80 | ||
| Blowdown valve | 2×DN50 | 2×DN50 | 2×DN50 | 2×DN50 | 2×DN50 | ||
Note:
1. The right to interpret this product belongs to Brit Thermal Energy Equipment Co., LTD., the design data may subject to changes without prior notice, the final design drawing shall prevail.
2. We can design and manufacture boilers with other parameters according to customers’ requirements.
