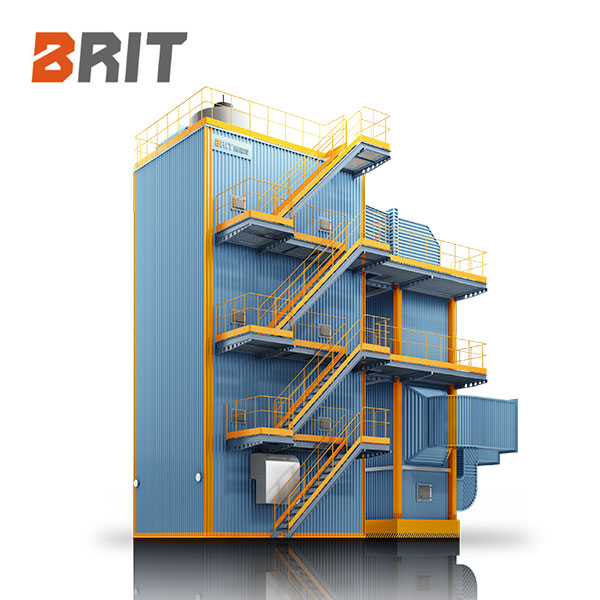

QXS Vertical (Modular) Corner Tube Gas Hot Water Boiler
1. Boiler proper utilizes self-supporting vertical corner tube structure, with high strength & stability, safe and reliable without shaking or surging.
2. Hot water boiler has no drum. Drum is in external and unheated without numerous densely expansion (welding) pipe holes.
3. Hot water boiler utilizes forced circulation + natural circulation (auxiliary). Vertical layout offers a greater height difference than traditional products, ensuring safer water circulation.
4. Large second-passage space provides ample heating surface arrangement in boiler proper, and the rear section is equipped with economizer and condenser (air preheater) for high efficiency.
5. Equal flue gas velocity design for dense convection heating surfaces makes flue gas velocity rationally controlled, prevents shaking of the heating surface.
6. Reserving sufficient space between densely heated surfaces for inspection & maintenance makes easy entry & exit of furnace & furnace chamber, making inspection & maintenance more convenient.
7. Modular design, high assembly degree, short installation period, small base space, more suitable for large capacity boilers.
Description
Product Name: Vertical (Modular) Corner Tube Gas Hot Water Boiler
Product Model: QXS Series
HS Code: 84021900
Manufacturing Standards: ASME/EU/GB
Packing: Boiler proper in nude packing, auxiliaries in steel frames for bulk vessel.
Application Range: 29MW≤Q≤116MW
Parameters
| Model / Parameters | QXS29-1.6/130/70-Q (Modular) | QXS46-1.6/130/70-Q (Modular) | QXS58-1.6/130/70-Q (Modular) | QXS70-1.6/130/70-Q (Modular) | QXS116-1.6/130/70-Q (Modular) | ||
|---|---|---|---|---|---|---|---|
| Rated thermal power (MW) | 29 | 46 | 58 | 70 | 116 | ||
| Rated working pressure (MPa) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | ||
| Rated outlet water temperature (℃) | 130 | 130 | 130 | 130 | 130 | ||
| Rated return water temperature (℃) | 70 | 70 | 70 | 70 | 70 | ||
| Full water capacity (m³) | 25.6 | 38.7 | 41.5 | 49.7 | 61.4 | ||
| Design thermal efficiency (%) | ≥96.3 | ≥96.5 | ≥96.8 | ≥96.8 | ≥97.1 | ||
| Exhaust gas temperature (℃) | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ||
| Design fuel | Natural gas, city gas, gas, coke oven gas, 0# light diesel, etc. | ||||||
| Transport weight of the largest component (t) | 29.5 | 41.6 | 44.2 | 52.8 | 31.6 | ||
| Dimensions of boiler proper (L×W×H) (m) | 8.2×4×11.2 | 9.4×4.2×11.6 | 11.2×4.2×13.5 | 11.8×4.2×14.2 | 12.2×8.4×13.5 | ||
| Dimensions after installation (L×W×H) (m) | 9.6×6.1×11.2 | 10.8×6.4×12.6 | 13.2×6.4×15.5 | 14.3×6.4×16.8 | 15×10.9×15.5 | ||
| Interface diameter (mm) |
|||||||
| Outlet valve | 2×DN200 | 2×DN250 | 2×DN300 | DN400 | 2×DN400 | ||
| Backwater valve | DN300 | DN300 | DN350 | DN400 | DN500 | ||
| Safety valve | 2×DN150 | 2×DN150 | 2×DN200 | 2×DN200 | 2×DN250 | ||
| Blowdown valve | DN50 | DN50 | DN50 | DN50 | DN50 | ||
Note:
1. The right to interpret this product belongs to Brit Thermal Energy Equipment Co., LTD., the design data may subject to changes without prior notice, the final design drawing shall prevail.
2. We can design and manufacture boilers with other parameters according to customers’ requirements.
