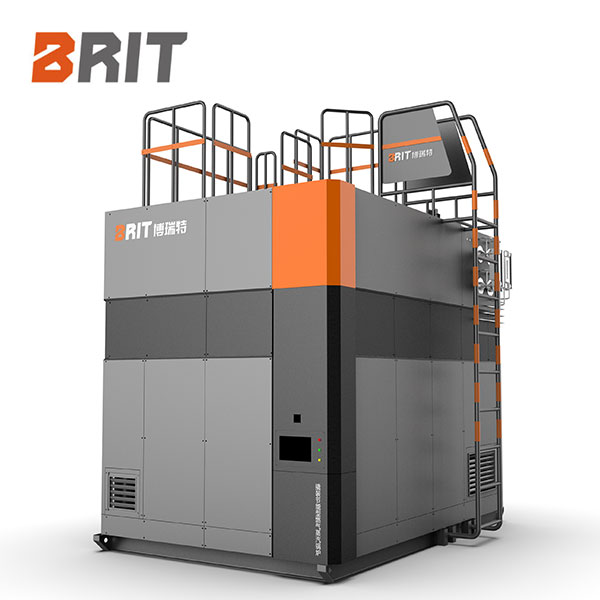

DHS(DC) Skid-Mounted Condensing Gas Steam Boiler
1. Integrated FIR low-nitrogen burner technology, corner tube technology and plate and shell deep condensation technology.
2. Unique “ultra-low nitrogen internal circulation technology”, with gas consumption per ton of steam ≤ 74.5 Nm³.
3.Deep condensation, with flue gas temperature ≤ 48°C (in the condition of no condensate water recovery);
4. Multi-unit group control to avoid “large horse pulling small cart”
5. Small in Size, flexible to be mounted.
Description
Product Name: Skid-Mounted Condensing Gas Steam Boiler
Product Model: DHS(DC) Series
HS Code: 84021900
Manufacturing Standards: ASME/EU/GB
Packing: Main body in nude packing, auxiliaries in steel frames for bulk vessel.
Application Range: 4t/h≤D≤6t/h; P≤3.82Mpa
Feature – More Energy Saving
1. Deep condensation, smoke temperature ≤ 48℃. By comprehensively applying various enhanced heat exchange technologies and making full use of flue gas condensation heat, thermal efficiency of boiler is up to 103%, which can save 4-6 m3 natural gas per ton of steam than common condensing boiler, more energy saving.
2. Large boiler drum space & unique design of steam drum internals provides better steam-water separation effect with steam dryness achieving ≥ 99%. Low pipe losses with high energy efficiency.
3. Fast steam generation (Steam can be generated in 5 minutes from cold state). Multiple boilers can be connected in parallel with a wide load adjustment range and more energy saving operation.
Parameters
| Model Parameters | DHS4 | DHS6 | |||||
|---|---|---|---|---|---|---|---|
| Rated evaporation (T/H) | 4 | 6 | |||||
| Rated working pressure (MPa) | 1.25/1.6/2.5 | ||||||
| Saturated steam temperature (°C) | 194/204/226 | ||||||
| Rated feed water temperature (°C) | 20 | 20 | |||||
| Full water capacity (m³) | 3.3 | 3.7 | |||||
| Operating water capacity (m³) | 2.3 | 2.7 | |||||
| Design thermal efficiency (%) | 103 | ||||||
| Exhaust gas temperature (°C) | 48 | ||||||
| Design fuel | Natural gas, etc. | ||||||
| Gas pressure (KPa) | 30~40 | 30~40 | |||||
| Fuel consumption (Nm³/h) | 298 | 447 | |||||
| Transport weight of the largest component(t) | 21 | 24 | |||||
| Operating weight (t) | 26 | 30 | |||||
| Dimensions after installation (L×W×H) (mm) | 5070×3740×5256 | 5370×3740×5256 | |||||
| Interface diameter (mm) | |||||||
| Main steam valve | DN100 | DN125 | |||||
| Safety valve | 2-DN50 | 2-DN65 | |||||
| Water inlet valve | DN40 | DN40 | |||||
| Blowdown valve | DN50 | DN50 | |||||
| Stack | φ400 | φ500 | |||||
Note:
1. The right to interpret this product belongs to Brit Thermal Energy Equipment Co., LTD., the design data may subject to changes without prior notice, the final design drawing shall prevail.
2. We can design and manufacture boilers with other parameters according to customers’ requirements.
